180 Animal Reader
Working Frequency: 134.2KHz/125KHz
Support Tag: EMID,FDX-B(ISO11784/85)
Reading/writing range: 2*12mm glass tube tag>5cm; 30mm ear tag>15cm(depends on tag)
Standard: ISO11784/85
Reading time: <100ms
Overview

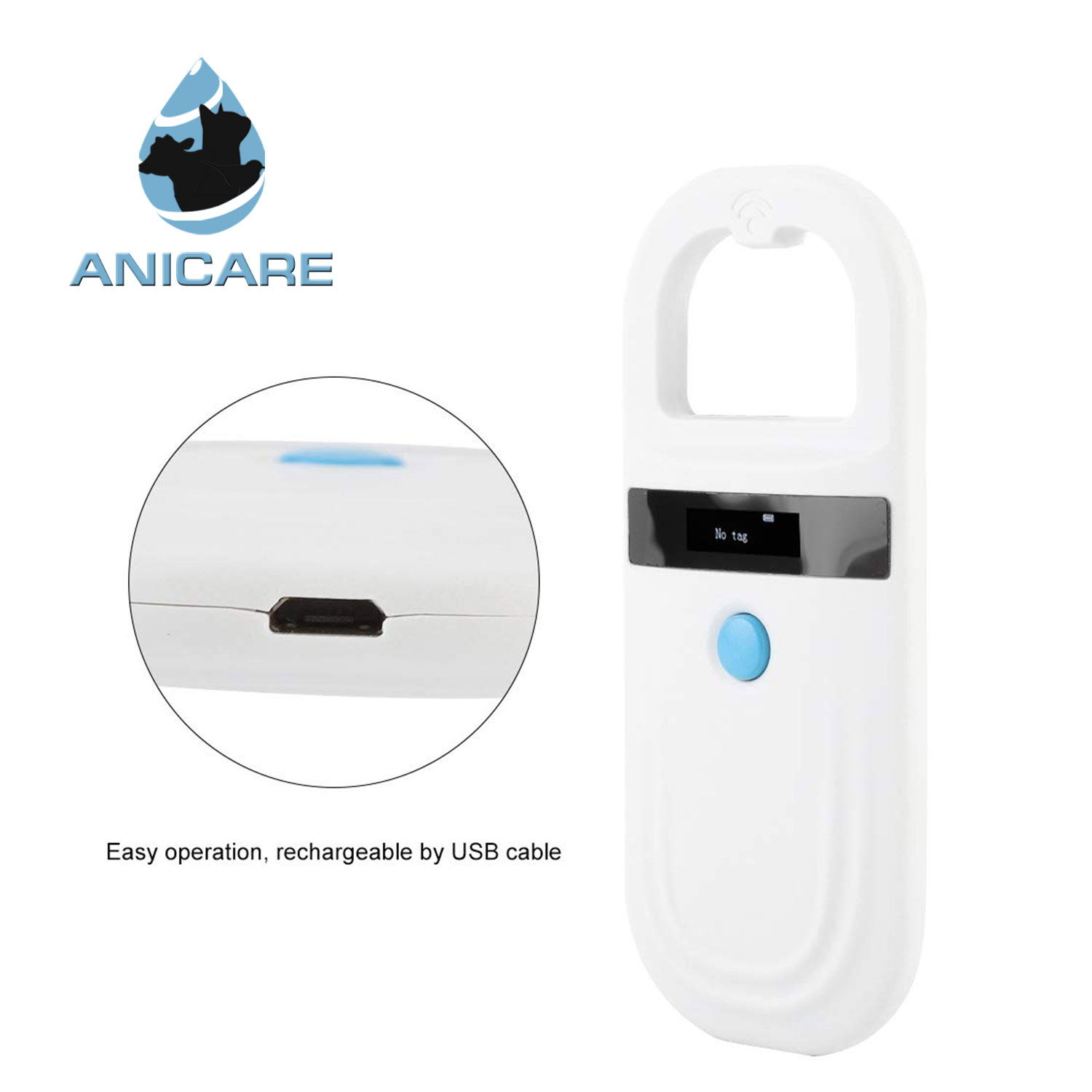

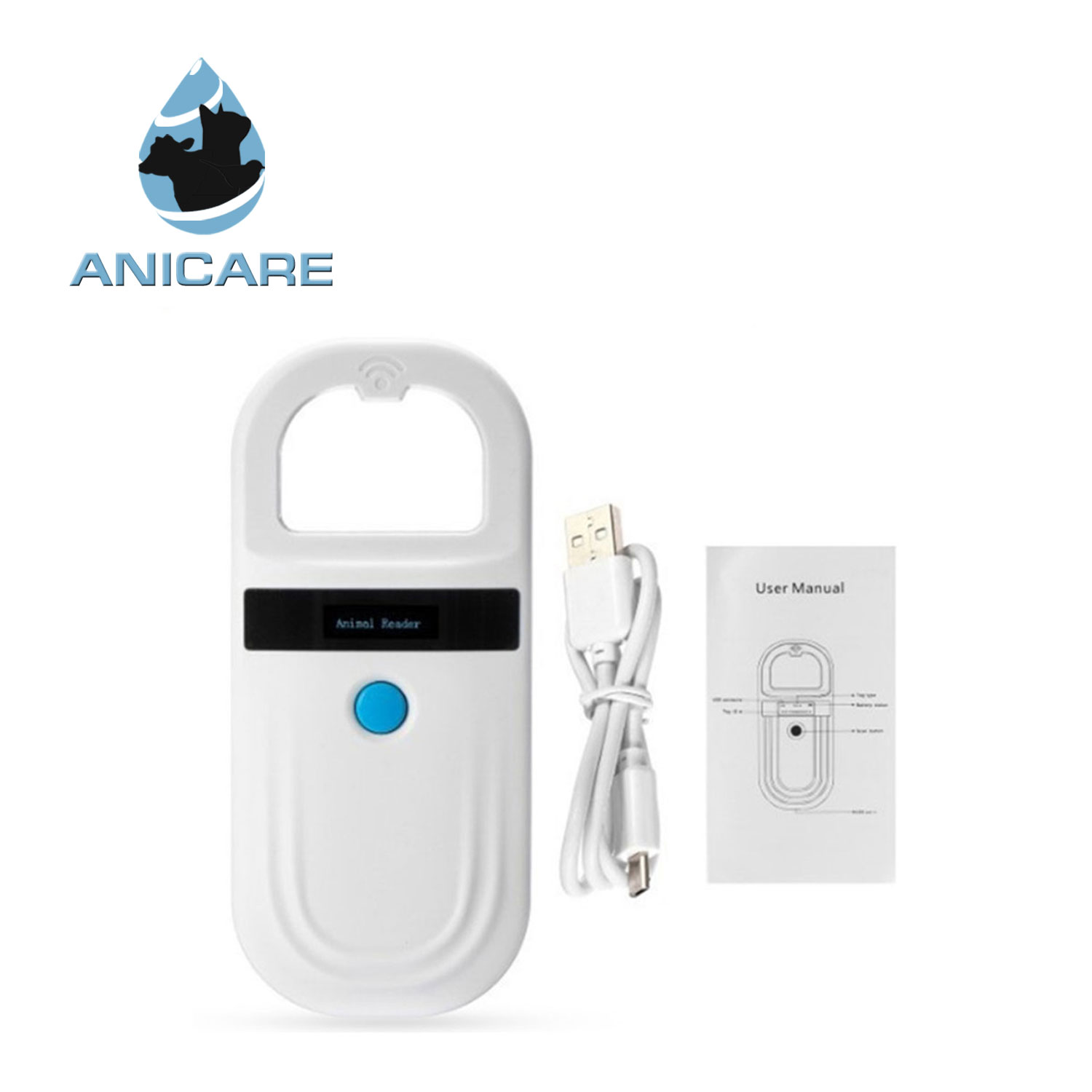

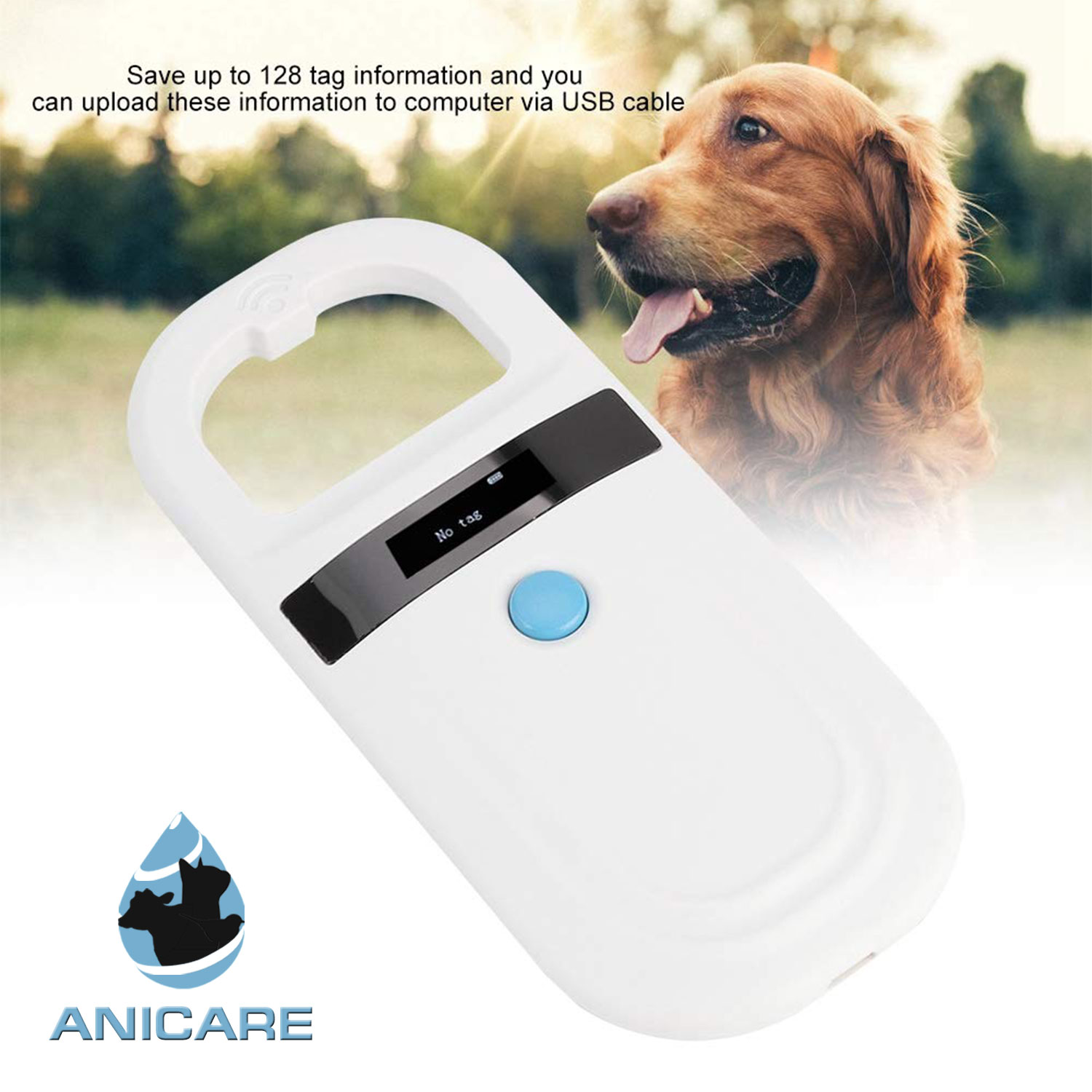

This is a low frequency tag scanner that adopt wireless identification technology and it suppors reading EMID, FDX‐B(ISO11784/85) etc. tag. This scanner use high brightness OLED display which can be seen clearly in bright light environment. It can store max 128 records of tag information with its built‐in memory, users can upload the information to the computer through USB cable . This product is stable with simple operation which is widely used for little animal management, resource management, railway inspection etc.
Physical Parameters
| Working Frequency | 134.2Khz/125Khz |
| Support Tag | EMID,FDX-B(ISO11784/85) |
| Reading/writing range | 2*12mm glass tube tag>5cm 30mm ear tag>15cm(depends on tag) |
| Standard | ISO11784/85 |
| Reading time | <100ms |
| Prompt | 0.91inch high brightness OLED,buzzer |
| Power supply | 3.7V(Li-battery) |
| Memory | 128 records |
| Communication | USB2.0 |
| Language | English or customized |
| Working Temp | -10℃~50℃ |
| Storage Temp | -30℃~70℃ |
| Communication | USB2.0 |
